PurePrep 24
High-Volume Nucleic Acid Extraction System

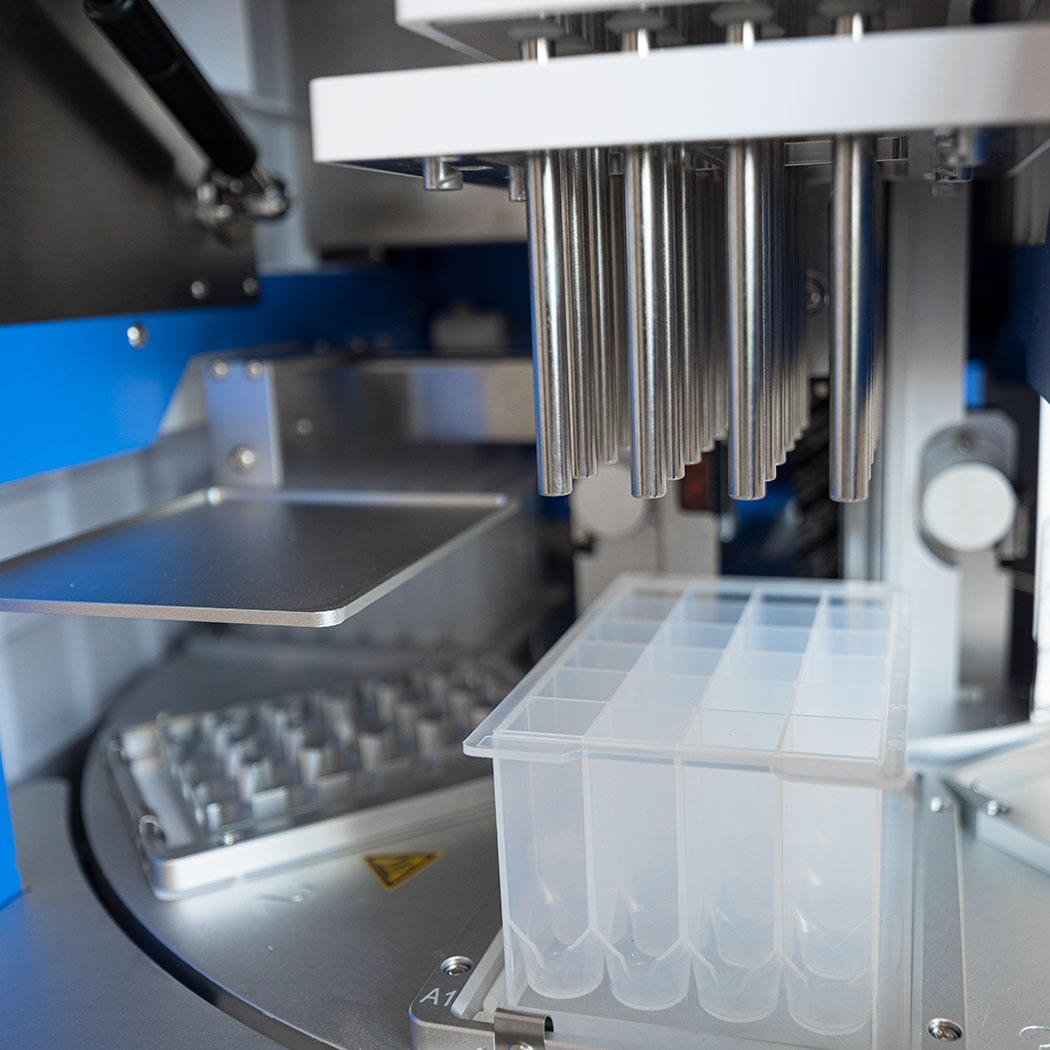

The PurePrep 24 is a medium-throughput benchtop nucleic acid purification system optimized to process high volume samples by utilizing magnetic bead-based separation technology. The device uses magnetic rods to transfer magnetic beads through the various purification phases of binding, mixing, washing and elution, enabling high-quality processing with no cross-contamination between samples or reagent carry-over. The system can process 1 to 24 samples of up to 10.000µL (10mL) simultaneously in about 30 – 60 minutes.

Swoosh Divider White Aqua
Ideal for processing samples with low DNA concentration
The PurePrep 24 can process samples with working volumes up to 10,000 µL, making it ideal for processing samples with a low DNA concentration that require high processing volumes such as circulating cell-free DNA.

The short automatic protocols remove the need for labour-intensive manual extractions in the lab. With easy reproducibility of protocols, the system guarantees consistent results for multiple runs.

The PurePrep 24 is an open system compatible with any bead-based protocol and is optimized for usage with PurePrep Extraction Kits such as the PurePrep cfDNA kit.

Features

  • Utilizes magnetic bead separation technology
  • Touchscreen interface for easy usage
  • Fully editable programs for optimal controls
  • UV lamp sterilization to avoid cross-contamination
  • Open system
  • Accurate temperature control system (±1°C)
  • Can process up to 24 samples in a working volume of 10 mL simultaneously
  • Optimized for usage with PurePrep cfDNA Kit

Consumables:

  • PurePrep 24 Deepwell Plate
  • PurePrep 24 Tip Comb

Specifications

  • Samples per run: 1- 24
  • Working volume: 1.000 – 10.000 µL
  • Width: 560 mm
  • Depth: 620 mm
  • Height: 500 mm
  • Weight: 54 kg
