PurePrep 24D
High-volume Extraction System Utilizing Tube Strips

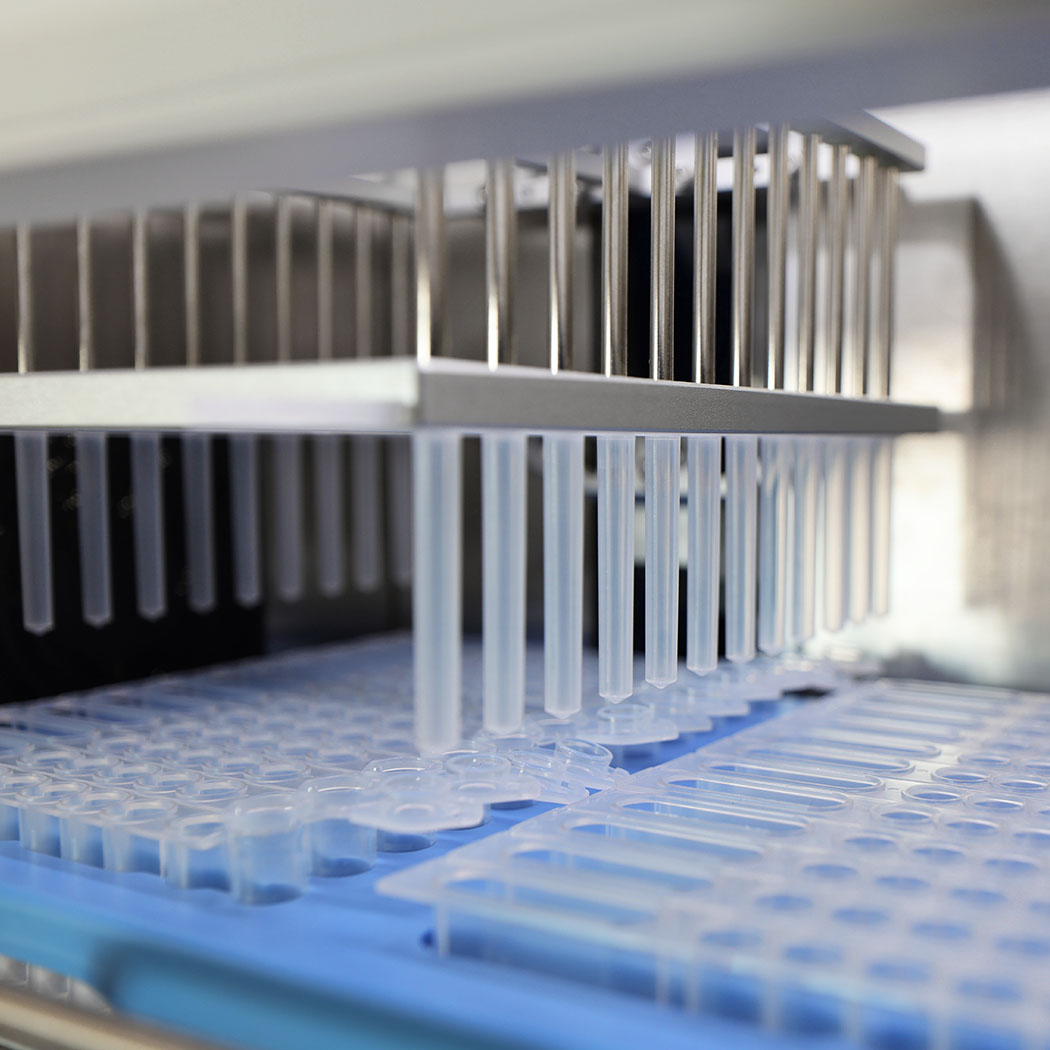

The PurePrep 24D is a medium-throughput & high-volume benchtop nucleic acid purification system that utilizes tube strips. The device uses magnetic rods to transfer magnetic beads through the various purification phases of binding, mixing, washing and elution, enabling high-quality processing with no cross-contamination between samples or reagent carry-over. Ideal for processing high volume samples with a low DNA concentration such as cfDNA, the PurePrep 24D can process 1 to 24 samples of up to 5 or 10 mL (based on which tube strip is used) simultaneously in about 30 – 60 minutes.

Swoosh Divider White Aqua
Process high-volume samples without wasting pastic consumables
The PurePrep 24D reduces hands-on time and increases productivity by automating the purification of nucleic acids, doing away with tedious manual extraction. Its small benchtop design doesn't take up much space in the lab.

In combination with 5 or 10 mL tube strips it is ideally suited for processing high-volume samples with a low DNA concentration. By utilizing the tube strips, the system can even process single samples without wasting plastic consumables. At the end of the protocol the elution automatically gets transferred to separate 2 mL tubes, enabling immediate downstream application.

Features

  • Utilizes magnetic bead separation technology
  • Uses tube strips instead of plates, sample transferred to 2 mL tube after purification for further processing
  • Touchscreen interface for easy usage
  • Fully editable programs for optimal controls
  • UV lamp sterilization to avoid cross-contamination
  • Open system flexible for any bead-based protocol
  • Accurate temperature control system (±1°C)
  • Can process 24 samples in a working volume of up to 10 mL simultaneously
  • Optimized for usage with PurePrep cfDNA Kit

Consumables:

  • 5 mL Tube Strips
  • 10 mL Tube Strips
  • 12-Tip Comb
  • 2 mL Tubes

Specifications

  • Samples per run: 1- 24
  • Working volume: 200 – 10.000 µL
  • Width: 400 mm
  • Depth: 520 mm
  • Height: 450 mm
  • Weight: 30 kg
